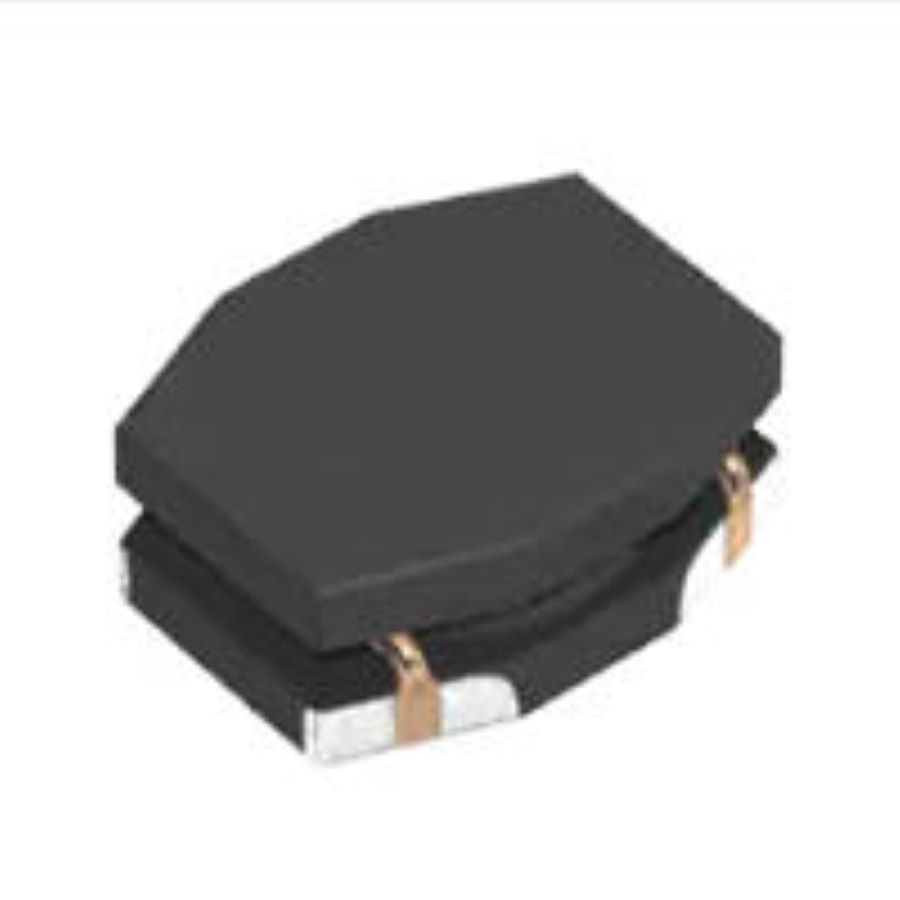

VLS252012ET-2R2M
Manufacturer:
TDK Corporation
Mfr.Part #:
VLS252012ET-2R2M
Datasheet:
Description:
Fixed Inductors 1008(2520 Metric) SMD/SMT 2.2 µH 20 % 1.3 A 154 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 0.991 mm |
| Length | 2.4892 mm |
| Width | 2.0066 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Case Code (Imperial) | 1008 |
| Case Code (Metric) | 2520 |
| Composition(Kit Type) | Wirewound |
| Height | 1.2 mm |
| Depth | 2.1 mm |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Current Rating | 1.3 A |
| DC Resistance (DCR) | 154 mΩ |
| Test Frequency | 1 MHz |
| Military Standard | Not |
| Shielding | Shielded |
| Inductance | 2.2 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 1.3 A |
| inductance tolerance | 20 % |
| Max DC Current | 1.75 A |
| Saturation Current | 1.55 A |
| Schedule B | 8504500000 |
| RoHS | Compliant |
| Packaging | Reel |
| Type | Wirewound |
Stock: 1653
Distributors
pcbx
pcbxUnit Price$0.09725
Ext.Price$0.09725
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.09725 | $0.09725 |
| 10 | $0.08588 | $0.85880 |
| 50 | $0.07584 | $3.79200 |
| 100 | $0.06611 | $6.61100 |
| 500 | $0.05762 | $28.81000 |
| 1000 | $0.05281 | $52.81000 |
| 3000 | $0.04841 | $145.23000 |
